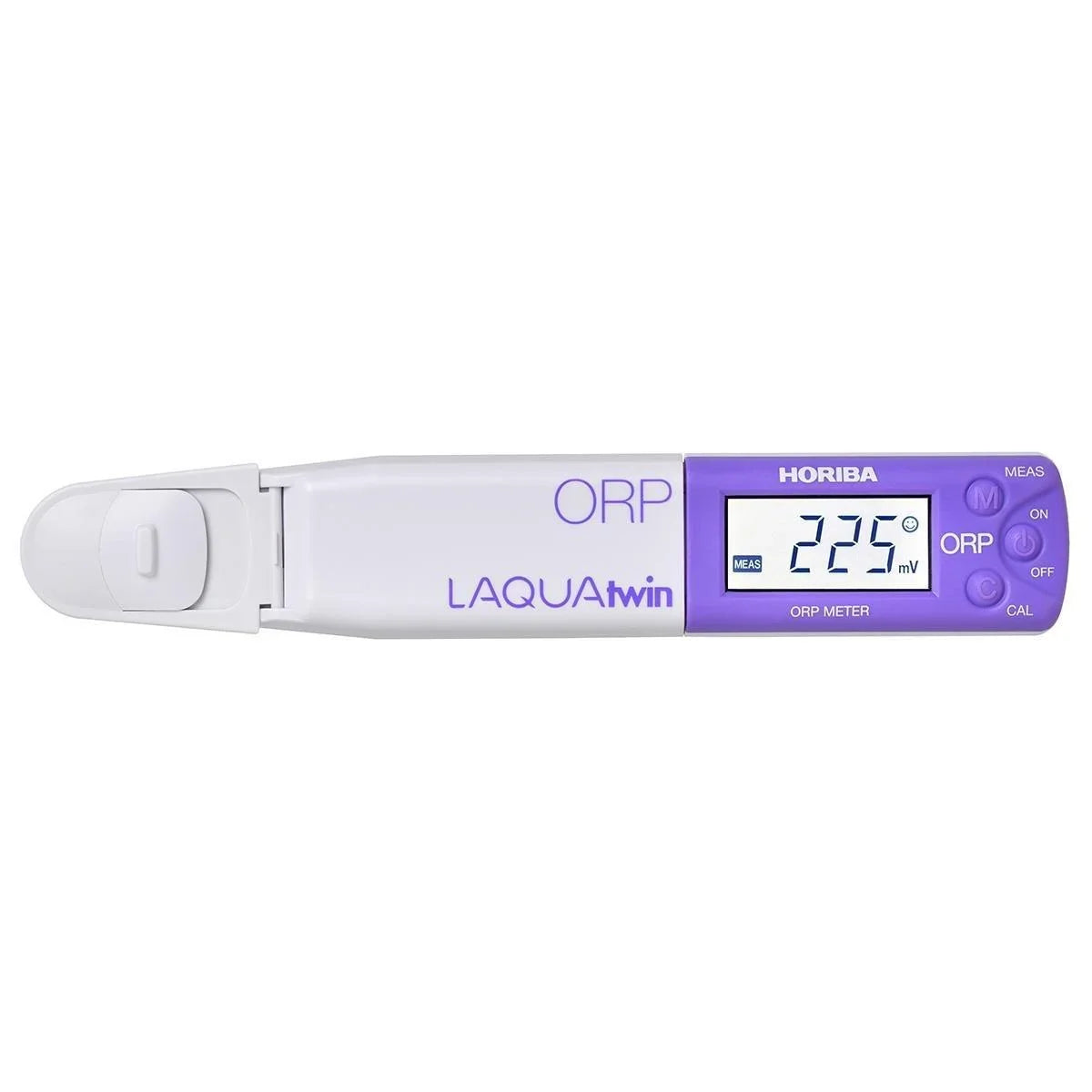

HORIBA LAQUAtwin ORP-11 Compact ORP Meter

Product Description

The HORIBA LAQUAtwin ORP-11 is a compact ORP (Oxidation-Reduction Potential) meter featuring HORIBA’s proprietary flat sensor technology.

It enables accurate ORP measurement using a very small sample volume, making it suitable for environmental monitoring, wastewater treatment, and soil or water management applications. The flat sensor allows direct measurement of liquid samples without the need for beakers.

Designed for portability and ease of use, this meter offers reliable performance in field and laboratory settings.

Key Features

• Compact ORP meter with flat sensor

• Measures ORP with minimal sample volume

• Suitable for environmental and industrial applications

• Waterproof design equivalent to IP67

• Backlit monochrome digital display

Product Specifications

• Model: LAQUAtwin ORP-11

• Measurement Parameter: ORP (Oxidation-Reduction Potential)

• Measurement Range: -1000 to 1000 mV

• Resolution: 1 mV

• Accuracy: ±2 mV (instrument repeatability)

• Calibration: 1-point calibration

• Minimum Sample Volume:

  • 0.3 mL or more

  • 0.05 mL when using Sampling Sheet B

• Display: Custom monochrome digital LCD with backlight

• Waterproof Rating: IP67 equivalent (not suitable for fully submerged measurement)

• Operating Environment:

  • Temperature: 5 to 40°C

  • Humidity: ≤85% RH (non-condensing)

Power & Battery

• Power Supply:

  • Coin-type lithium battery CR2032 × 2

• Battery Life:

  • Approx. 400 hours (backlight OFF)

  • Battery life may be reduced when backlight is ON

Size & Weight

Device Size (mm / cm)

(Protrusions not included)

Device Size (inch)

Weight

• Approx. 50 g (excluding batteries)

Included Accessories

• ORP sensor

• CR2032 lithium batteries ×2

• Dropper ×1

• Instruction manual

• Quick manual

• Storage case

• ORP standard solution (Zobell standard solution 225 mV) ×1

• Sampling Sheet B ×5

Consumables (Sold Separately)

• Sensor: S080-ORP

• ORP Standard Solution: 514-ORP-225
