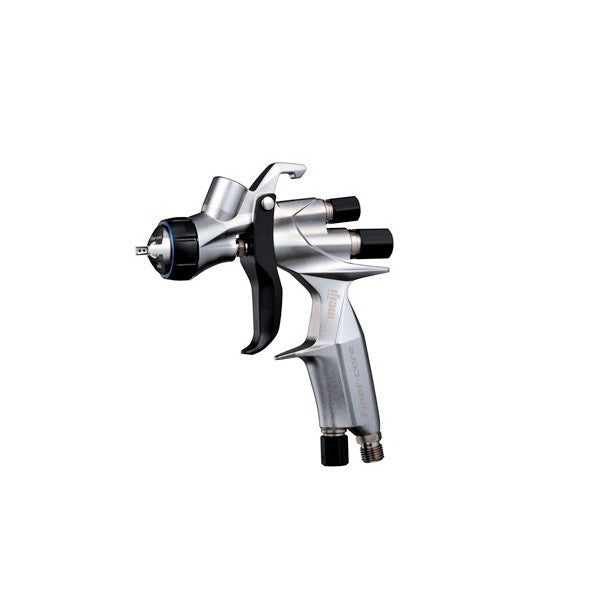

The Meiji Seisakusho FINER-CORE-HVLP-13 Hand Spray Gun is a professional-grade HVLP spray gun designed for precise and efficient coating applications. With a 1.3mm nozzle diameter, it delivers consistent atomization for smooth finishes. Its lightweight 340g body ensures easy handling, making it suitable for automotive, industrial, and woodworking use.
-
High Efficiency HVLP Technology – Lower air pressure reduces overspray while maintaining excellent coating quality.
-
Precision 1.3mm Nozzle – Ideal for fine finishing and detailed paintwork.
-
Optimized Spray Pattern – Maximum effective pattern width of 280mm.
-
Lightweight & Durable – Only 340g for reduced fatigue during long use.
-
Professional Use – Compatible with automotive, woodworking, and industrial coatings.

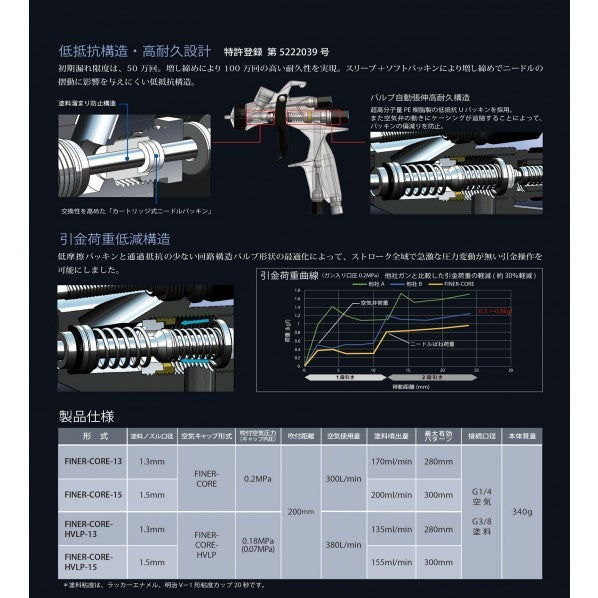

Technical Specifications
| Specification |
Value (Metric) |
Value (Imperial) |
| Nozzle Diameter |
1.3 mm |
0.05 in |
| Air Cap Pressure |
0.18 MPa (0.07 MPa cap internal) |
~26 psi (10 psi internal) |
| Spray Distance |
200 mm |
7.87 in |
| Air Consumption |
380 L/min |
13.4 CFM |
| Paint Output |
135 mL/min |
4.6 fl oz/min |
| Max Spray Pattern |
280 mm |
11.02 in |
| Air Inlet Size |
G1/4 |
– |
| Paint Inlet Size |
G3/8 |
– |
| Weight |
340 g |
0.75 lbs |
